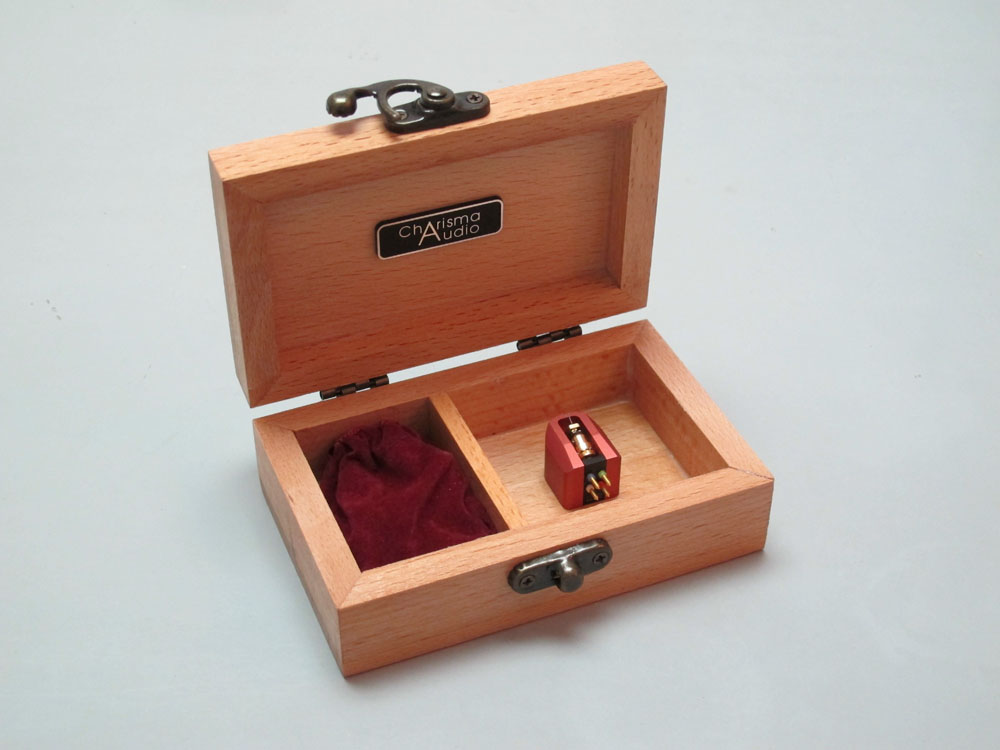

Charisma Audio MC-1 Cartridge

Charisma Audio MC-1 Moving Coil Cartridge
Charisma Audio MC-1 Moving Coil Cartridge Charisma Audio MC-1 Moving Coil Cartridge Charisma Audio MC-1 Moving Coil Cartridge Charisma Audio MC-1 Moving Coil Cartridge

Specifications:


Cartridge Weight: 13.6 g

Cantilever: annealed INOX steel

Stylus: line contact nude diamond 5 x 150 uM

Vertical Tracking Angle: 20 degrees

Coil: pure iron crossed-coil with 6N OCC copper

Output Voltage: 0.4 mV at 3.54 cm/sec.

Internal Impedance: 15 ohms

Frequency Response: 20 – 20,000 Hz ± 1 dB

Channel Balance: better than 0.5 dB

Channel Separation: better than 30 dB

Dynamic Compliance: 15 um/mN

Recommended Loading: 100 – 1,000 ohms

Recommended Tracking Force: 1.9 g ± 0.1 g

Tracking Ability at 315 Hz / 2 g: 80 uM

Recommended Tonearm Mass: medium

Break-in Period: 50 hours
